Description

KY-037 High Sensitivity Sound Detection Sensor Module with Microphone

Short Description

The KY-037 sound sensor module detects sound levels with high precision using a built-in microphone. Featuring both analog and digital outputs with adjustable sensitivity, it is ideal for Arduino, ESP32, and IoT-based sound detection projects.

---

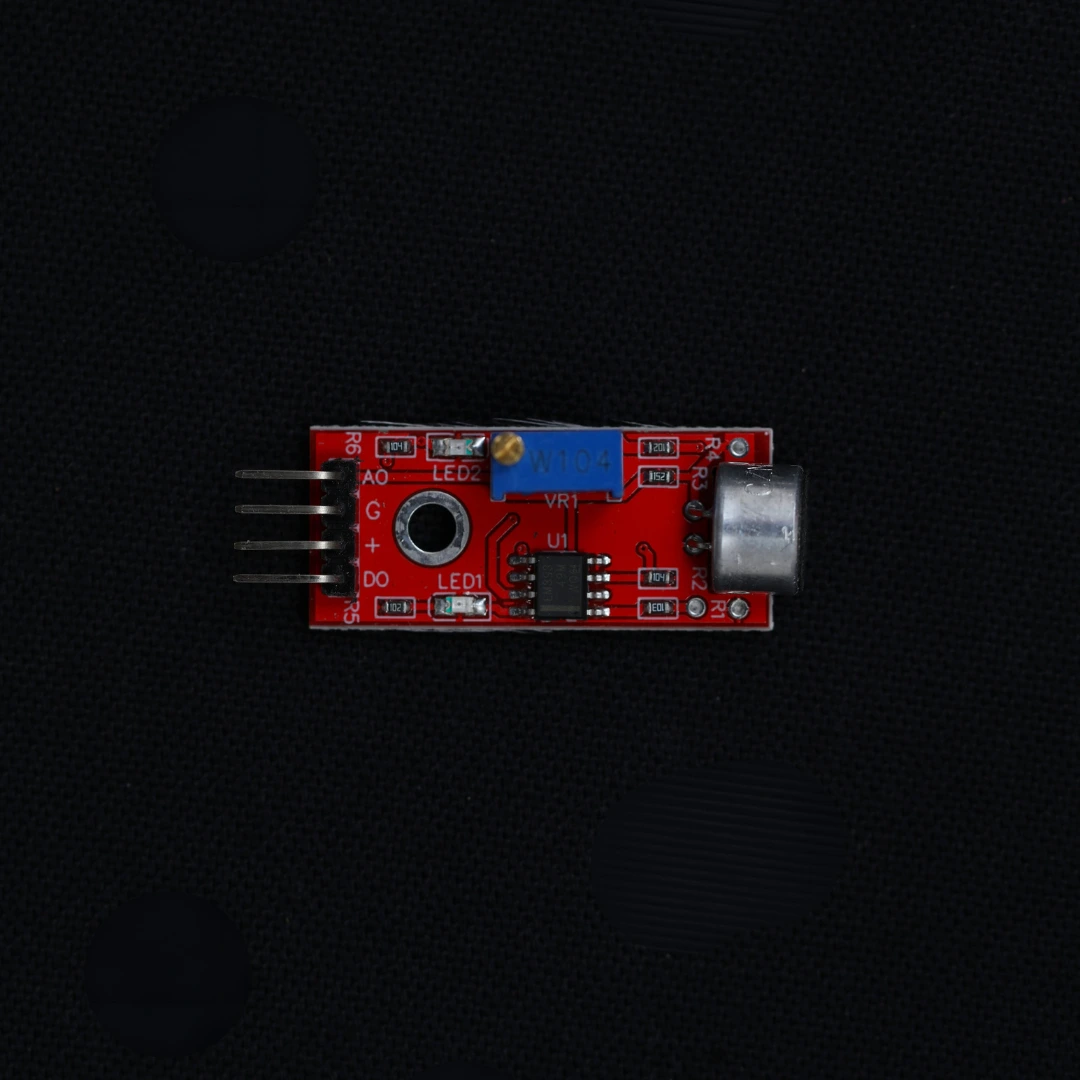

KY-037 Sound Sensor Module

Accurate Sound Detection for Smart Electronics

The KY-037 Sound Sensor Module is designed for real-time sound monitoring and detection. Equipped with a high-sensitivity electret microphone and LM393 comparator, this module allows you to detect noise levels and trigger actions instantly.

Perfect for beginners and advanced developers, it integrates easily with microcontrollers to create interactive and automated systems.

---

Key Features

• High Sensitivity Microphone
  Detects even low-level sound signals accurately
• Dual Output (Analog + Digital)
  Use analog output for sound level measurement or digital output for threshold detection
• Adjustable Sensitivity
  Onboard potentiometer to fine-tune detection threshold
• Fast Response Time
  Instant signal output when sound is detected
• LED Indicators
  Visual feedback for power and signal output
• Easy Integration
  Compatible with Arduino, ESP32, Raspberry Pi, and other development boards

---

Technical Specifications

• Model: KY-037
• Operating Voltage: 3.3V to 5V
• Output Type: Analog (A0) and Digital (D0)
• Comparator: LM393
• Microphone Type: Electret condenser
• Sensitivity Adjustment: Yes (potentiometer)
• Dimensions: Compact module size

---

Pin Configuration

• VCC: Power supply (3.3V to 5V)
• GND: Ground
• A0: Analog output (sound intensity level)
• D0: Digital output (threshold trigger)

---

How It Works

The module uses a microphone to capture sound waves and convert them into electrical signals. These signals are processed by the LM393 comparator:

• Analog Output provides continuous sound level data
• Digital Output triggers HIGH/LOW when sound exceeds a set threshold

This makes it ideal for both monitoring and event-based systems.

---

Applications

• Clap switch systems
• Sound-activated lights
• Noise monitoring systems
• Smart home automation
• Security alarm triggers
• Voice/sound-based controls

---

Why Choose KY-037

The KY-037 offers flexibility, reliability, and ease of use in one compact module. Whether you are building beginner projects or advanced IoT systems, its dual output and adjustable sensitivity make it a must-have sensor.
