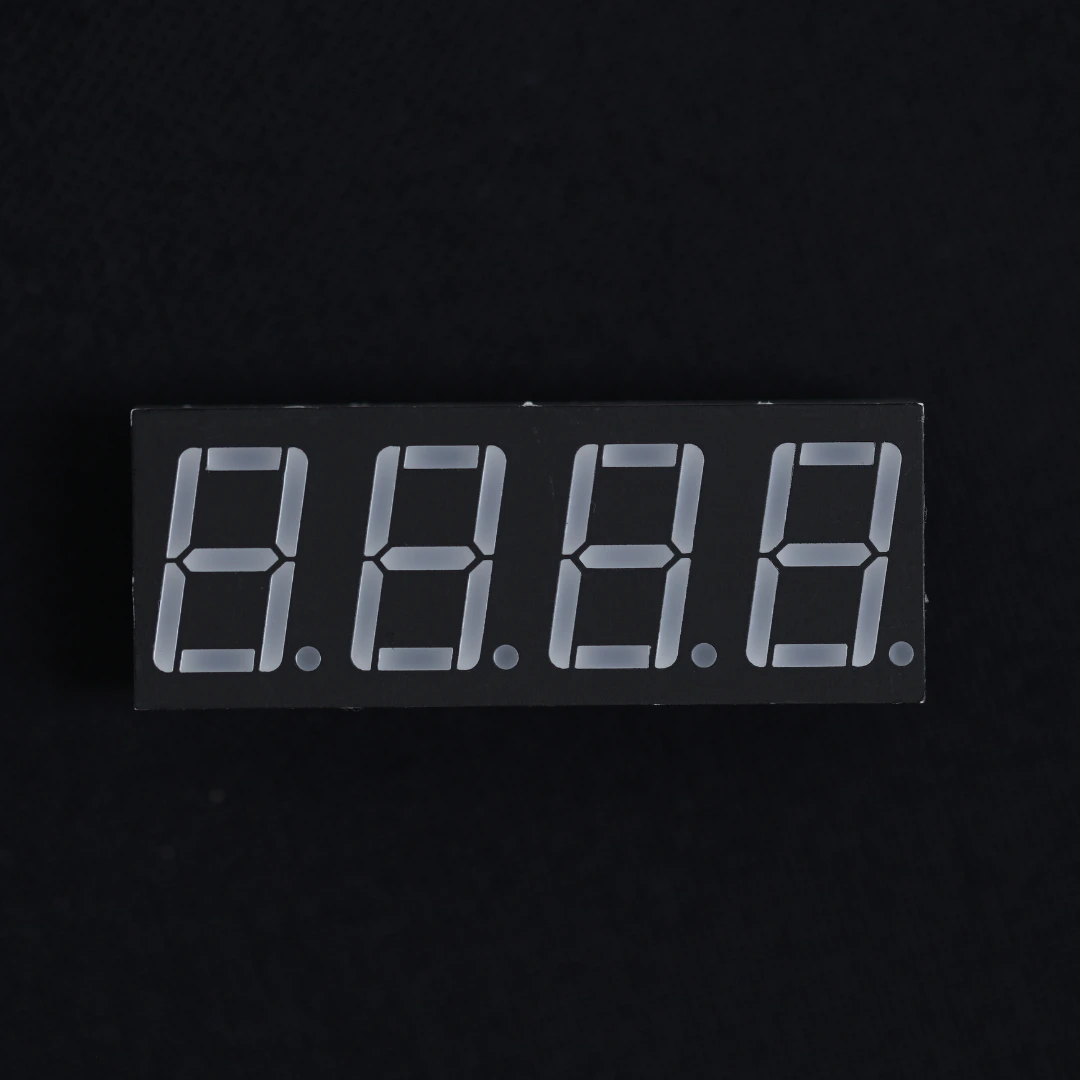

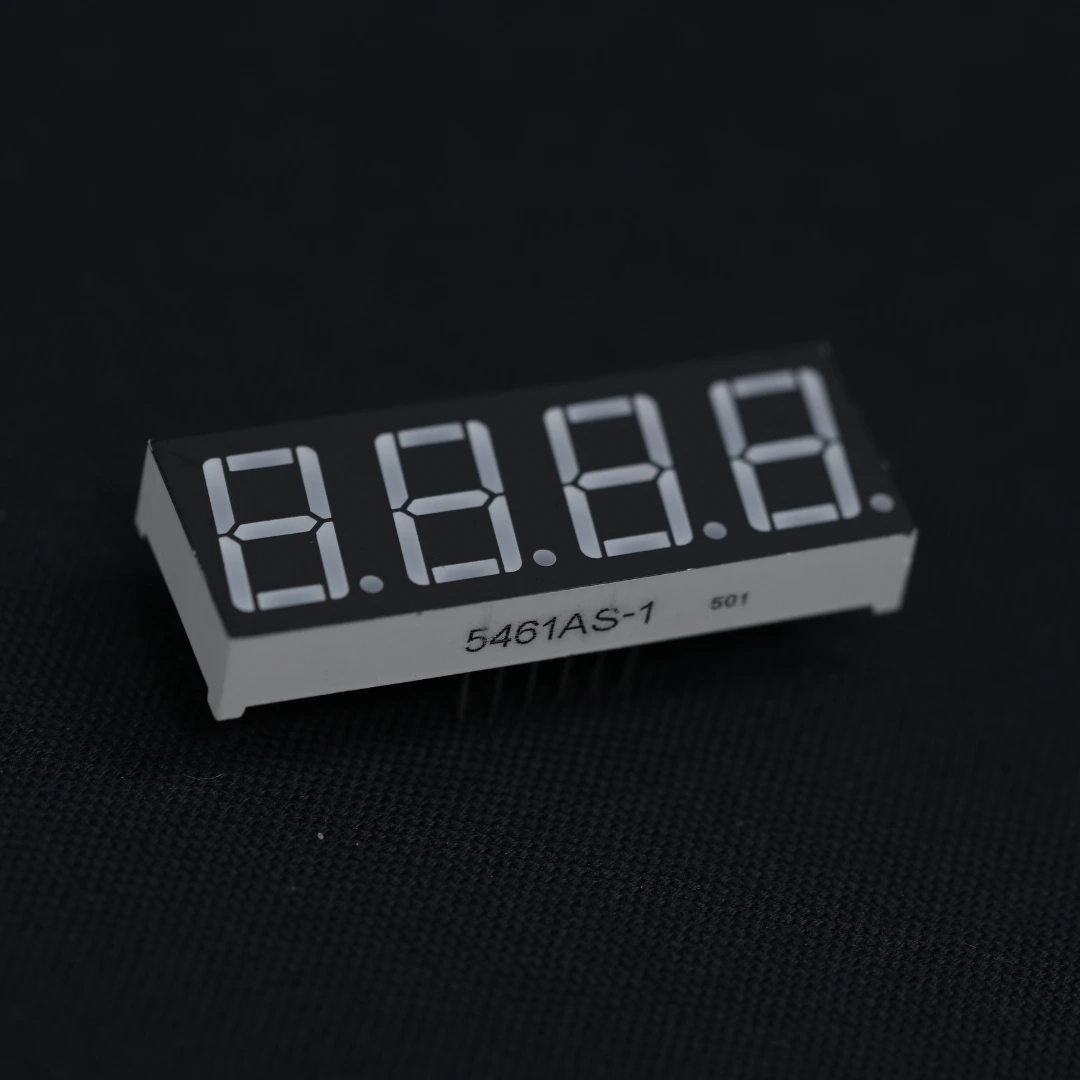

4 Digit 7 Segment LED Display Module –Arduino & Embedded Systems

Description

Overview

The 4 Digit 7 Segment LED Display Module is a raw display component designed for direct control using microcontrollers. Unlike modules with built-in drivers, this version requires multiplexing, making it perfect for students and developers who want to understand low-level display control.

It consists of 4 individual 7-segment digits, allowing you to display numbers from 0000 to 9999. This module is widely used in educational settings, embedded systems, and custom electronics projects.

Key Features

• 4 Digit Numeric Display – Displays values from 0000 to 9999
• No Driver IC – Full manual control for learning and customization
• Multiplexing Support – Efficient control using fewer pins
• Common Anode or Cathode Options – Flexible interfacing
• Bright LED Segments – Clear visibility
• Low Cost & Reliable – Ideal for prototyping and education
• Perfect for Learning Embedded Systems Concepts

Technical Specifications

• Display Type: 4 Digit 7 Segment LED
• Digits: 4
• Segment Type: 7 segments + decimal point per digit
• Configuration: Common Anode / Common Cathode (variant dependent)
• Operating Voltage: Typically 2V–2.5V per segment
• Recommended Current: 10–20mA per segment
• Interface: Direct GPIO control (no driver IC)
• Pin Count: Typically 12 pins (may vary by model)
• Display Color: Red (common), others available

How It Works (Multiplexing Concept)

This display uses multiplexing, where:

• All segment pins (A–G, DP) are shared
• Each digit is activated one at a time very quickly
• The human eye perceives all digits as continuously ON

This reduces pin usage while maintaining full control.

Applications

• Digital counters and timers
• DIY clocks (with multiplexing code)
• Scoreboards
• Embedded systems learning projects
• Industrial numeric displays
• Frequency counters
• STEM education kits

Why Choose This Module?

This version is ideal if you want to go beyond plug-and-play and truly understand how displays work at the hardware level.

At Alpsense, we recommend this for:

• Students learning multiplexing
• Embedded systems beginners
• Custom hardware developers

You get:

• Reliable, tested components
• Perfect for STEM and academic projects
• Strong compatibility with Arduino & ESP32
• Learning-focused product selection

What’s Included

• 1 x 4 Digit 7 Segment LED Display Module (No Driver IC)

Getting Started

To use this module, you’ll need:

• Microcontroller (Arduino / ESP32 / etc.)
• Current-limiting resistors
• Multiplexing code
